Boring Mills, Horizontal, Vertical, All Types: 5 G&L Fraser Table Type Horizontal Boring Mill

5" G&L Fraser Table Type Horizontal Boring Mill

Stock Number: 2316

Age: 1975

Condition: Very Good

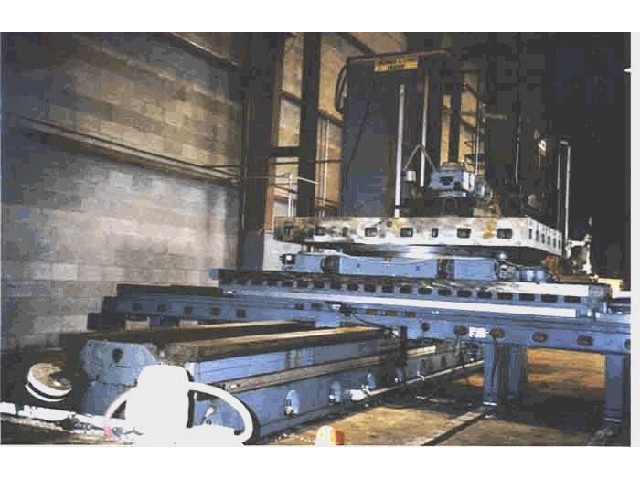

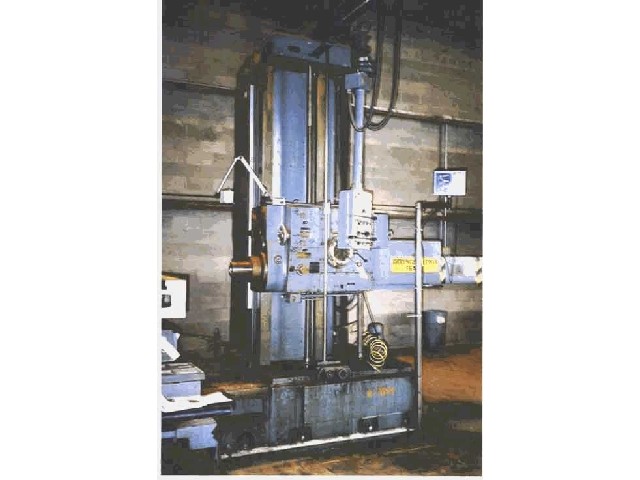

Boring Mills, Horizontal, Vertical, All Types: 5 G&L Fraser Table Type Horizontal Boring Mill, Click to view larger photo...       Boring Mills, Horizontal, Vertical, All Types: 5 G&L Fraser Table Type Horizontal Boring Mill, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Spindle Diameter5"
Spindle Taper#50
Spindle Speeds (43)7.5 - 975 RPM
Spindle Travel (approximately)48"
Table Size60" x 120"
Vertical Head Travel78"
Cross Travel of Table120"
Saddle Travel on Bed104"
Motor HP30 HP
Voltage220/440/3/60

Optional Equipment
Right Angle Milling Head$2,950.00

Equipped With:
Power Draw Bar
Fagor 3-Axis DRO
Ball Screw on Saddle Travel

Overall Dimensions of Machine 8' 8" wide x 22' 3" long x 13' 6" high
Approx. Weight of Machine 45,000 lbs.
Overall Dimensions of Table 5' 3" wide x 18' 3" long x 38" high
Approx. Weight of Table 20,000 lbs.
