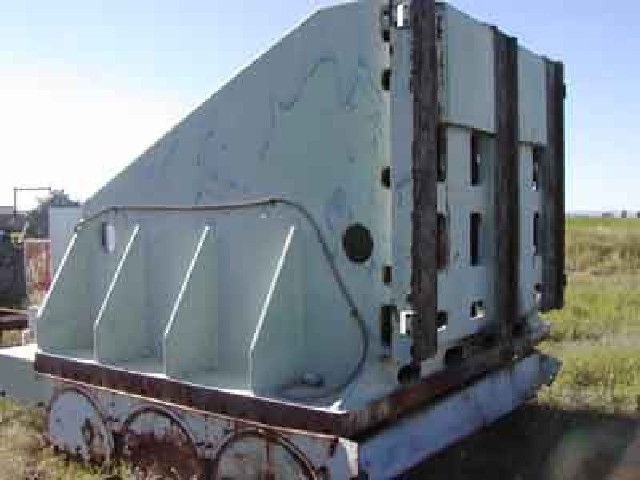

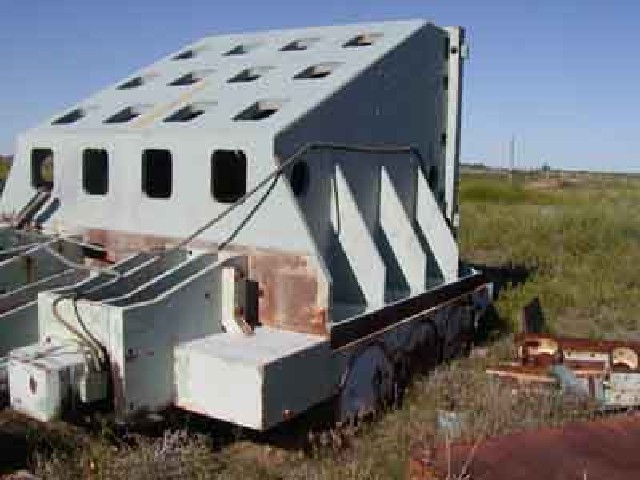

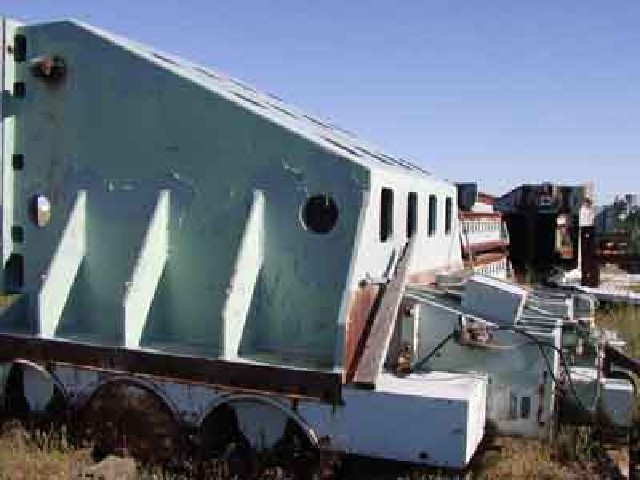

8' x 12' Giddings & Lewis Angle Plates with CNC Tilt Fixtures
Stock Number: 2901
Click to view larger photo
| Specification | Description |
|---|
| Two Pieces Avaialbe, Priced Each. | |
Equipped With:
Bottom Dimensions of Angle Plates- 8' high x 10' wide x 7' deep angle plates
Top Dimension of angle plates- 10' wide x 44" deep (Machined Flat on Tops)
Number of T-Slots- 19
Size of T-Slots- ¾"
Center to Center Distance of T-Slots- 5"
(3ea.) 10" Wide Ways on Bottom of Angle Plates for mounting on Power Slide Base
Equipped with: CNC Tilt Fixtures
Approx. Weight of Angle Plates- 68,000 lbs. Each (80,000 lbs. each with tilt fixtures attached)
Slide Bases for the Above Angle Plates
45" High x 96" Wide x 110" Deep
Drive Motor H.P.- 10
Drive Motor Volts- 220/440
Worm Gear Reduction Box
Acme Screw
Approx. Weight of Base- 40,000 lbs. Each
