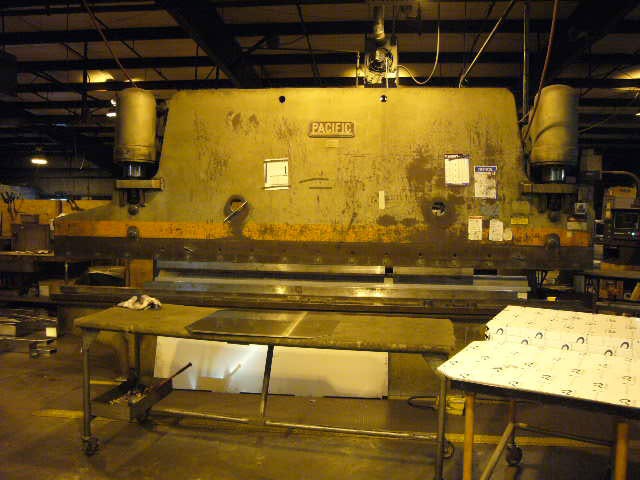

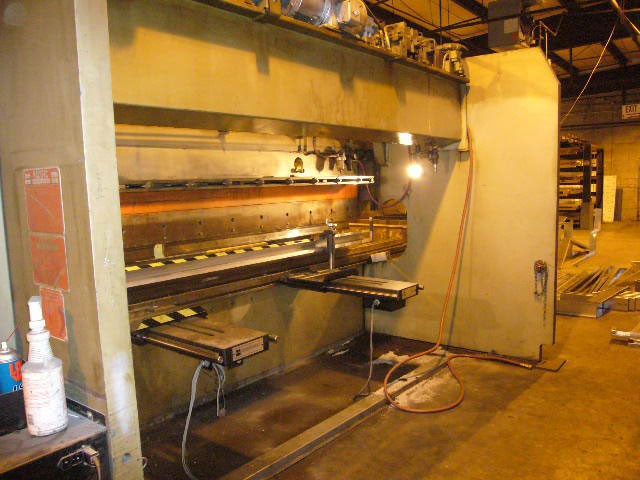

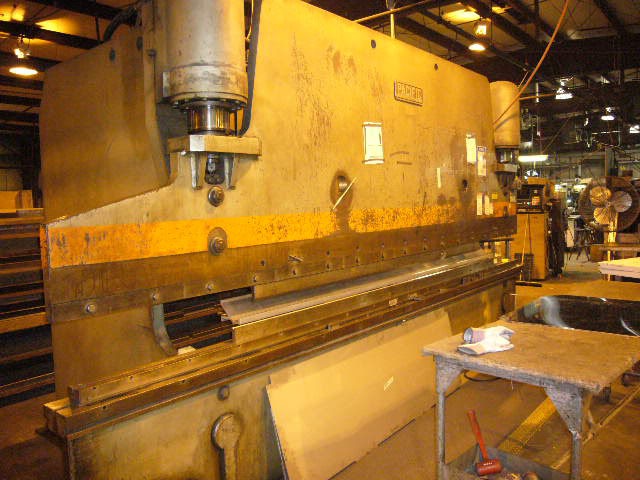

200T x 16'6" Pacific Hydraulic Press Brake W/ Autobend 7 CNC
Stock Number: 2917
Age: 1975
Condition: Good
Click to view larger photo
Equipped With:
Capacity 200 Ton
Overall Length Of Bed & Ram 16'6"
Between Side Frames 14'3"
Stroke 12"
Open Height 17"
Closed Height 5"
Throat Depth 13-1/2"
Hydraulic Oil Reservoir 150 Gallons
Main Motor 25 HP 230/3/60
Equipped With :
6" Horn On Left Side Of Bed & Ram
Tonnage Control
Tonnage Indicator
Auto Lube
Ram Tilt Control
Electric Foot Switch
Hurco Autobend 7 Two Axis Control
Manual Wedge Type Crowning On Bed
All Manuals
Approx Weight 35,000 lbs
Approx Dimensions: 17' x 58" x 107" above floor.
Bed apron goes approx 31" below floor.
