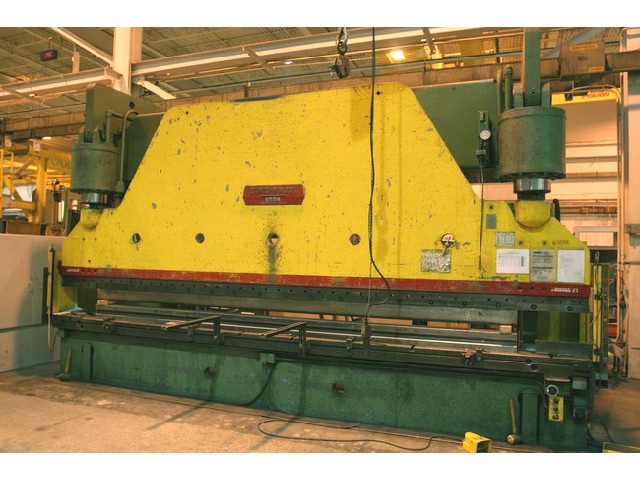

500 Ton x 20' Cincinnati Hydraulic Press Brake
Stock Number: 3062
Age: 1971
Condition: Good
Click to view larger photo
Equipped With:
500 Ton X 20' Cincinnati Hydraulic 16'6" BH; New Pump & Rebuilt Cylinders In 2010, Light Curtains, Fine Adjustment 1971
Model 500H16
Serial 37854
Year 1971
Capacity 500 tons
Bending capacity 5/8" X 13'(16MM X 4M)
Overall length of bed & ram 20' (6.09 METERS)
Distance between housings 16'5" (5 METERS)
Stroke of ram 12"
Shut height 10"
Open height 22"
Fast press 55 IPM
Full tonnage press 26 IPM
Return speed 60 IPM
Drive motor 50 hp
Weight 85,900 lbs.
Machine is equipped with:
Motorized ram adjustment w/ micrometer adjustments
Adjustable light curtains
Hydraulic cylinders recently repacked
