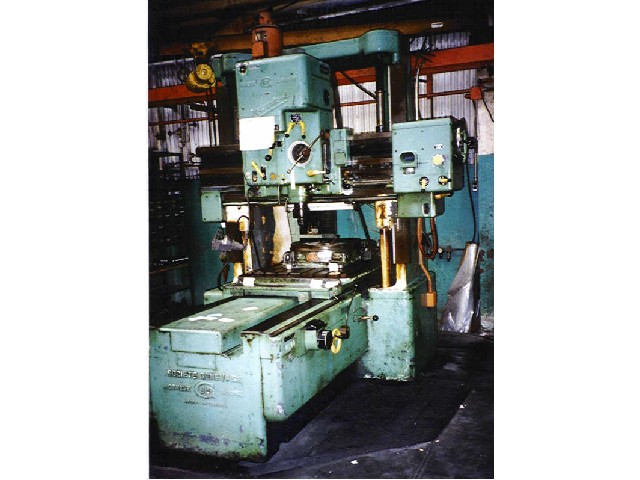

SIP Hydroptic-6 Jig Boring & Milling Machine W/Pratt & Whitney Rotary Table
Stock Number: 2799
Condition: Good
Click to view larger photo
Equipped With:
Type- H-6 T.- 20 C
Table Working Surface- 43" x 33"
Long. Table Travel- 40" Traverse Spindle Head Travel- 28"
Spindle Quill Travel- 12"
Distance Between Housings- 43"
Max. Distance from Table to Bottom of Spindle- 35-1/8"
Internal Spindle Taper- # 4 Morse External Spindle Taper- (Special) SIP 4e
Spindle Speeds (18) 40 - 2,000 Automatic Feeds (6) 0.0016 - 0.014 IPR
Hydraulic Table Feeds up to 12 IPM Rapid Traverse- 100 IPM
Permissible Load- 3,000 lbs.
Drilling Capacity in Cast Iron- 2-3/8" Boring Capacity- 12" Diameter
Range of Depth Measuring Device- 10"
Equipped with: Pratt & Whitney 24" Rotary Table and Misc. Assorted Tooling
Shipping Dimensions- 8' Wide x 11' Long x 10' 8" High
(2ea.) 4' x 4' Pallets/Boxes with Tooling & Misc. Covers Etc.
Approx. Machine Weight- 19,000 lbs.
