PRATT & WHITNEY 4-E Jig Borer

PRATT & WHITNEY 4-E Jig Borer

Stock Number: 2800

Condition: Good

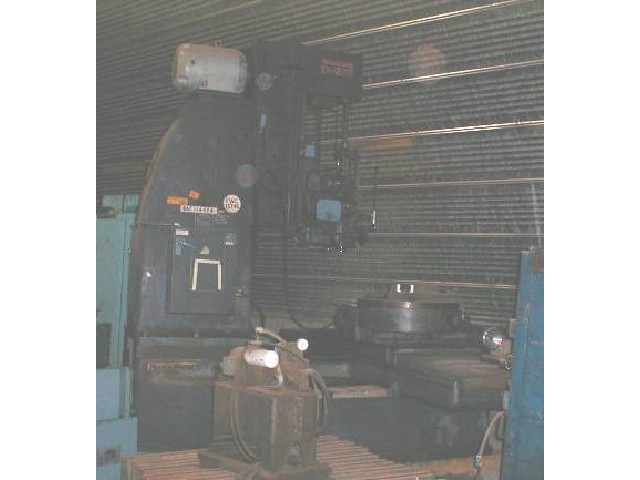

PRATT & WHITNEY 4-E Jig Borer, Click to view larger photo...
Click to view larger photo


Equipped With:
Table Size- 3' x 6'
Cross Travel- 35"
Vertical Head Travel- 18"
Quill Travel- 10 ½"
Spindle Speeds (12) 31 - 47 - 62 - 93 Low Range
125 - 188 - 250 - 375 Med. Range
500 - 750 - 1,000 - 1,500 High Range

Feeds (8) (A-Position) .006 - .010 - .015 - .0035
(B-Position) .0008 - .0013 - .002 - .0005

Motor H.P.- 20
Volts- 220/440
Wiring Diagram- A-16870

36" Pratt & Whitney Tilting Power/Manual Rotary Table
Rotary Table Motor H.P.- 1
Rotary Table Motor Volts- 220/440

Overall Dimensions- 11' 7" Front - Back x 14' 7" Left - Right x 11' 8" High
Approx. Weight- 40,000 lbs.
