10' x 26 Carlton 4A Traveling Column Radial Drill

10' x 26" Carlton 4A Traveling Column Radial Drill

Stock Number: 2829

Condition: Good

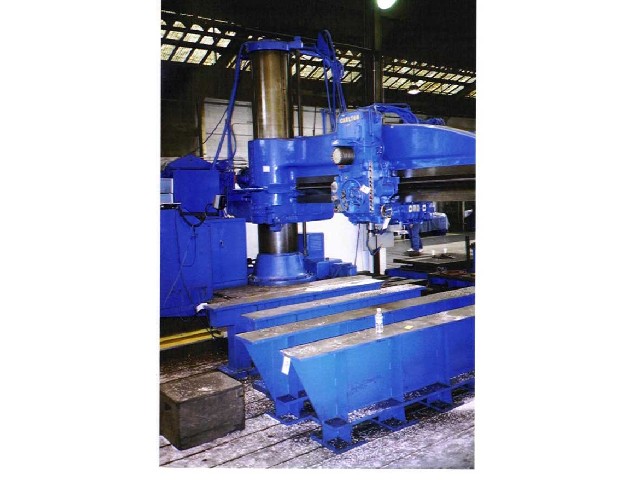

10' x 26 Carlton 4A Traveling Column Radial Drill, Click to view larger photo...
Click to view larger photo


Equipped With:
Vertical Clearance Under Arm- 9'
Head Travel on Arm- 10'
Column Travel on Bedways 172"
Spindle Speeds (36) 12 to 1,200 RPM
Spindle Taper- # 6
Power Elevation
Heidenhain 2-Axis DRO
Depth in Inches Indicator
Depth in Thousandths Indicator

Motor H.P.- 25
Motor Volts- 220/440

NOTE: The arm on this drill is stationary (not pivoting/rotating like radial drill)

Overall Dimensions of Column & Arm with Head- 6' 2" wide x 20' 2" long x 12' 11" high
Overall Dimensions of Saddle & Bed Section- 8' 2" wide x 26' 8" long x 8' 5" high (9' on blocks)
Approx. Weight of Column & Arm with Head- 35,000 lbs.
Approx. Weight of Saddle & Bed Section- 35,000 lbs.
