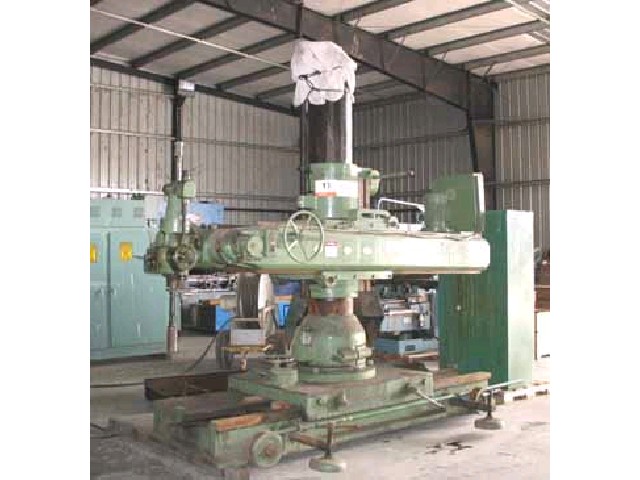

5' x 15" ASQUITH Portable Universal Radial Arm Drill
Stock Number: 2893
Age: 1971
Condition: Good

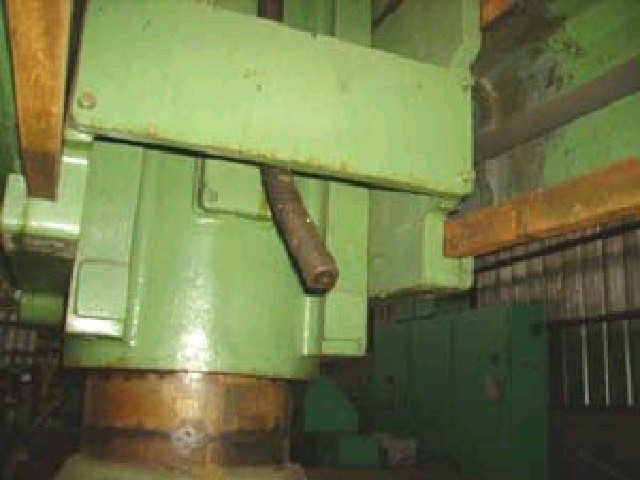

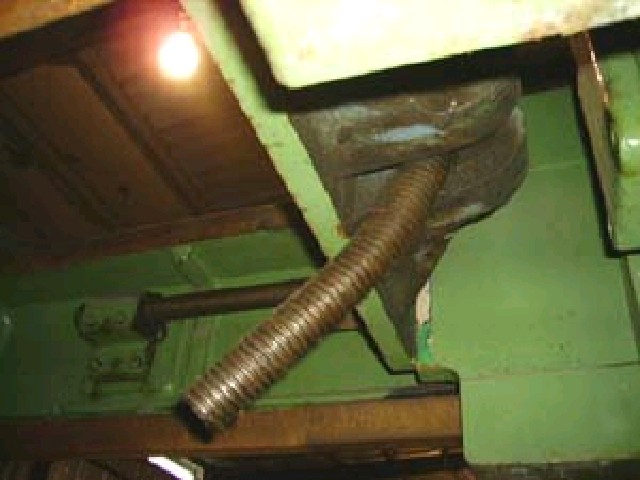

Click to view larger photo
Equipped With:
Spindle Speeds (12) 22 to 500 RPM
Spindle Taper- # 5
Quill Travel- 17"
Arm Travel- 7'
Column Travel on Base- 62"
Vertical Arm Travel- 36"
Motor H.P.- 5
Volts- 220/440
Overall Dimensions- 7' 7" Wide x 12' 7" Long x 11' 6" High (on 4 x 4 Blocks)
Approx. Weight- 18,000 lbs.
