30 x 18' Sidney Lathe W/3 3/4 Hole, 1000 RPM, Taper Attch, 3J, 4J

30" x 18' Sidney Lathe W/3 3/4" Hole, 1000 RPM, Taper Attch, 3J, 4J

Stock Number: 1820

Age: 1957

Condition: Good

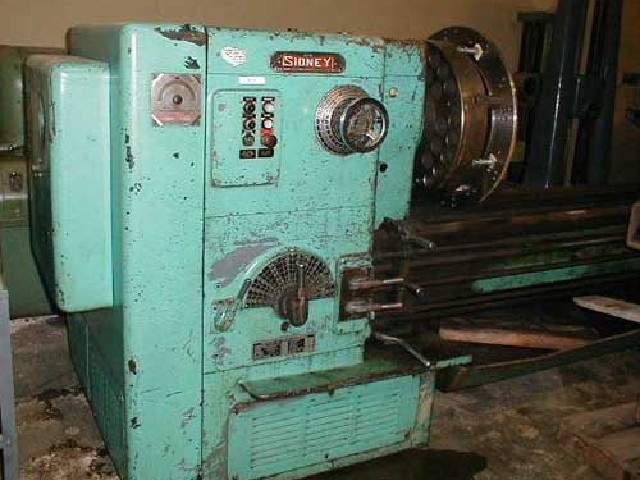

30 x 18' Sidney Lathe W/3 3/4 Hole, 1000 RPM, Taper Attch, 3J, 4J, Click to view larger photo...       30 x 18' Sidney Lathe W/3 3/4 Hole, 1000 RPM, Taper Attch, 3J, 4J, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Max. Swing Over Bedways30"
Distance Between Centers216"
Swing Over Cross Slide22"
Width Across Bedways19-1/2"
Spindle Speeds (32)5 - 1000 RPM
Spindle Hole3-3/4"
Tailstock Quill Diameter4-1/2"
Tailstock Quill MTNo 5 MT
Motor HP25 HP
Electrics 220/440/3/60Wired 440v
Weight18,000 lbs
Dimensions317" x 66" x 60"

Equipped With:
Hard Steel Ways, D-1-11 Cam Lock Spindle, Taper Attachment, Rapid Traverse, Power Compound, 24" Steel Body 4-Jaw Chuck with 2-Piece Jaws, 1Steady Rest with 29" hole, 1 Steady Rest with 16-1/2" hole, 1 Steady Rest with 16" hole **missing rollers**, 1 Steady Rest with 7" hole, 1 Follow Rest
