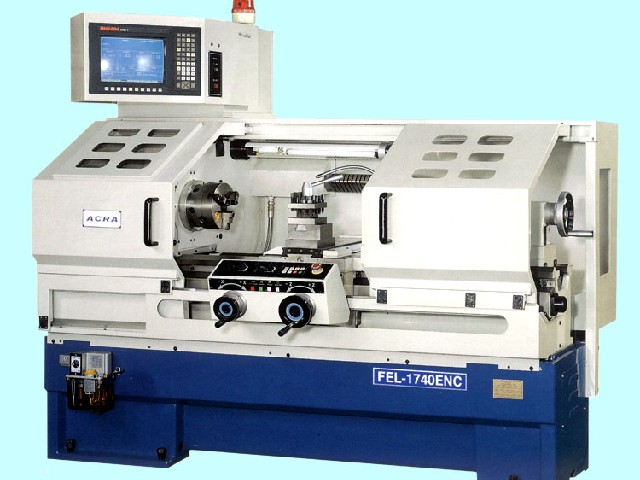

17" x 60" Acra CNC Teach Lathe w/ Anilam 4200T Control
Stock Number: 2188
Condition: new
Click to view larger photo
| Specification | Description |
|---|
| Swing over Bedways | 17" |
| Swing Over Cross Slide | 10.9" |
| Distance Between Centers | 60" |
| Width of Boxed Bedways | 12" |
| Spindle Nose / Taper | D1-6 / MT #6 |
| Spindle Bore / Bar Capacity | 2" |
| | |
| Axis Specifications | |
| X Travel | 9.5" |
| Z Tavel | 57" |
| X Rapids | 314 IPM |
| Z Rapids | 472 IPM |
| X Axis Motor | 1.34 HP |
| Z Axis Motor | 2 HP |
| X & Y Axis Positioning | 0.0002" / 4" |
| X & Y Axis Repeatability | ± 0.0001" |
| | |
| Spindle Speeds | |
| Low Range | 30 - 400 RPM |
| High Range | 400 - 2800 RPM |
| | |
| Tailstock Quill Stroke | 5" |
| Tailstock Interference Switch | Yes |
| Tailstock Quill Diameter / Taper | 2.32" / MT #4 |
| | |
| Motor | 7.5 HP |
| Floor Dimensions | 108" x 51" x 79 |
| Weight (approx) | 4,960 lbs |
Equipped With:
The ACRA FEL-1740 And FEL-1760 CNC Lathes Are Versatile Teach Type CNC Flat Bed Lathes With Manual, Conversational, Teach, And CNC Operating Modes. The Bed Features A Rugged Meehanite Casting, With Thick Widely Spaced Cross Supports And Induction Hardened Ground Ways For Accuracy And Rigidity. Coolant System With Removable Tank Is Standard Precision Ground Ball Screws Are Driven By AC Digital Servo Motors. The Spindle Is Driven Through A 2-Speed Gearbox By An Infinitely Variable AC Inverter And Includes Constant Surface Speed And Threading Functions.
STANDARD ACCESSORIES:
Automatic Lubrication For All Slide Ways And Ball Screws
Up-To-Date Fabricated Sliding Door And Inspection Window
Steady Rest
4 Way Tool Post
Halogen Working Light
Coolant System
RS-232 Port
Centers And Sleeve
Tools And Tool Box
Leveling Block And Bolts
Own Operation, Programming manual And Spare Parts List
OPTIONAL ACCESSORIES:
3 Jaw Scroll Chuck
10" Semi Steel (Made in Taiwan) $525.00
Bison Chucks, Made in Poland
Semi Steel Reversible Top Jaws
10" (2000 RPM) $650.00
12" (1500 RPM) $920.00
Bison Steel Body Chucks, Reversible Top Jaws
10" (3500 RPM) (.003" Repeatable Accuracy) $860.00
12" (2800 RPM) $1,153.00
Bison Set True Steel Body Reversible Top Jaws
10" 3 Jaw Chuck (.0015" Repeatable Accuracy) $866.00
Back Plate Adapter for 10" Set True Chuck $188.00
12" 3 Jaw Chuck (.0015" Repeatable Accuracy) $1,172.00
Back Plate Adapter for 12" Set True Chuck $266.00
4 Jaw Independent Chuck
12" Cast Body (Taiwan) $450.00
Bison 4 Jaw Chucks, Cast Steel Body, Reversible Top Jaws
10" $592.00
12" $728.00
Follow Rest $195.00
Dorian Toolpost 6 Piece Set SDN40CA $1,500.00
W/Holders: CA-1; CA-2; CA-4; Ca-5; CA-7-71C; CA-881
Live Center $95.00
