22 x 180 LeBlond Medium NE Engine Lathe, 3 J, 4J, St Rest, Aloris

22" x 180" LeBlond Medium NE Engine Lathe, 3 J, 4J, St Rest, Aloris

Stock Number: 2743

Age: 1953

Condition: Good

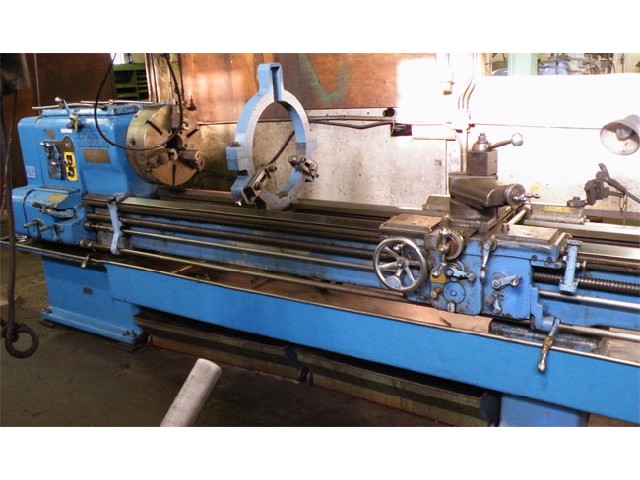

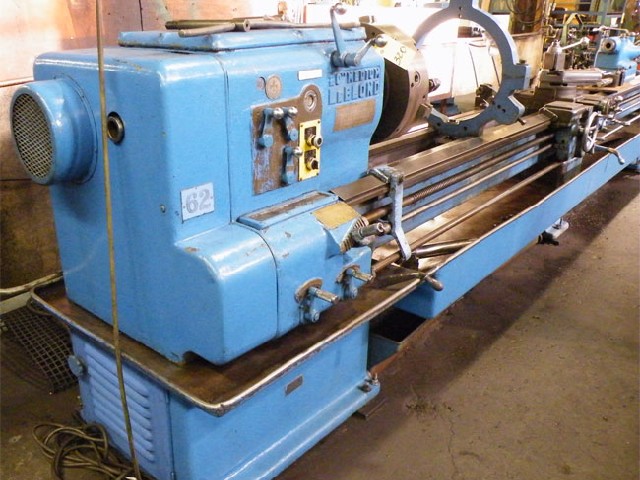

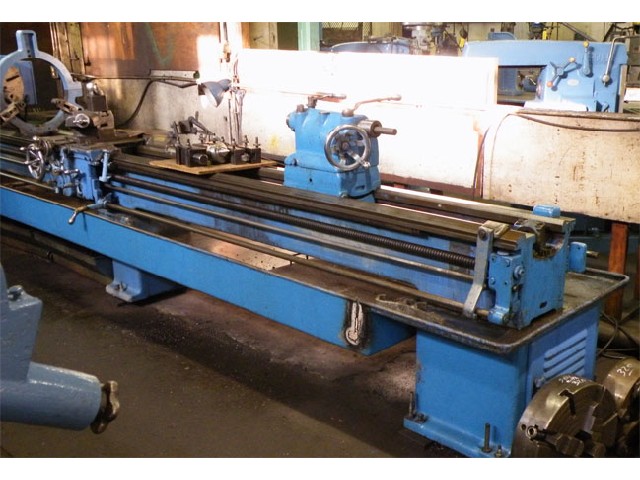

22 x 180 LeBlond Medium NE Engine Lathe, 3 J, 4J, St Rest, Aloris, Click to view larger photo...       22 x 180 LeBlond Medium NE Engine Lathe, 3 J, 4J, St Rest, Aloris, Click to view larger photo...       22 x 180 LeBlond Medium NE Engine Lathe, 3 J, 4J, St Rest, Aloris, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Swing Over Bedways23"
Swing Over Cross Slide16"
Distance Between Centers180"
Spindle Speeds (24)16 - 1010 RPM
Spindle Bore1.75"
Spindle NoseL-3
Feed Range (60)
Longitudinal.0025" to .152" IPR
Cross.00125" to .076"
Inch Threads (60)1 to 60 tpi 1 to 60 tpi

Tailstock Quill Diameter3"
Tailstock TaperNo 5 MT
Bed Width17"

Motor15 HP
Electrics 220/440/3/60Wired 440v

Floor Dimensions22' x 6' x 5'
Weight12,000 lbs

Equipped With:
18" Steel Body 4 Jaw Chuck; 18" Buck 3 Jaw Chuck; 18" Steady Rest w/ Rollers; Aloris CA Tool Post w/ 6 Holders; L-Type Spindle Nose; Chip Pans
