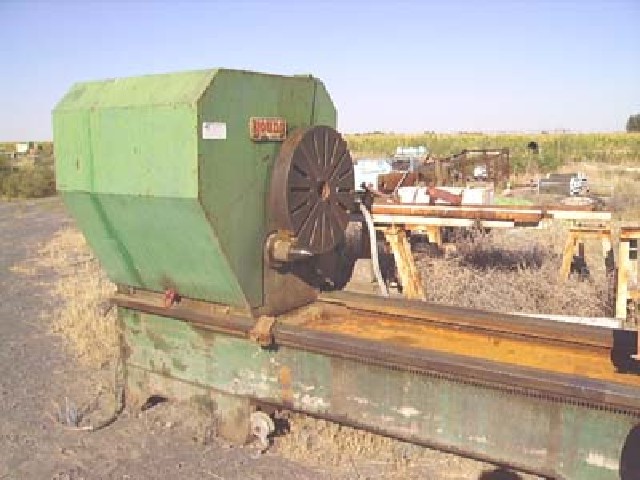

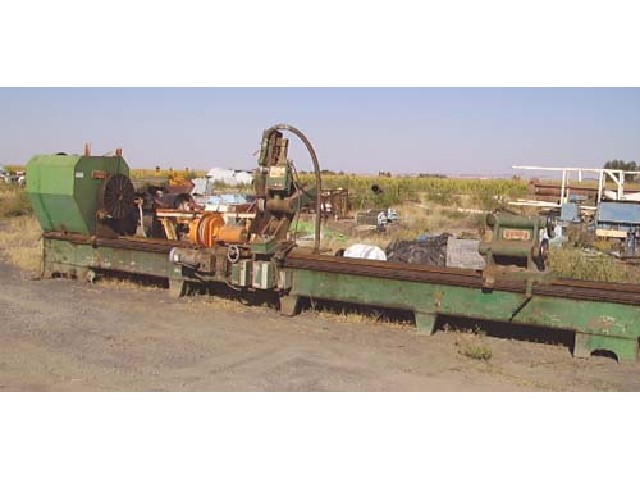

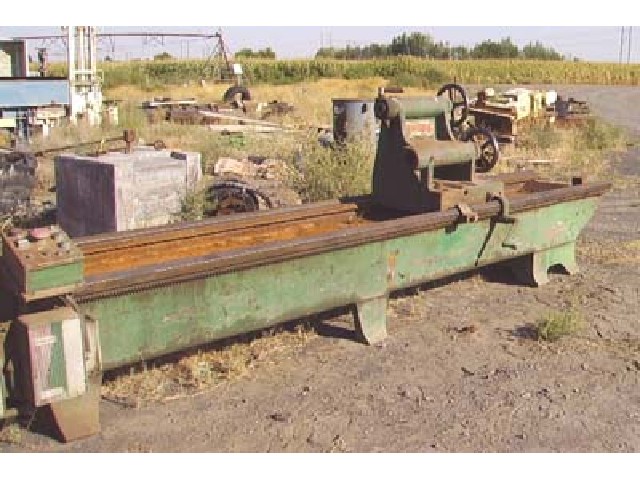

26" x 48" x 21' Young-McCabe Belt Grinding & Polishing Lathe
Stock Number: 2759
Condition: good
Click to view larger photo
Equipped With:
Max. Swing on Lower Spindle- 26"
Max. Swing on Upper Spindle- 48"
Swing Over Cross Slide- n/a
Spindle Hole (Lower Spindle)- 2"
Spindle Hole (Upper Spindle)- 2-1/4"
Lathe Headstock driven by US Variable Speed Drive
Motor H.P.- 20
Motor Volts- 220/440
G&P Belt Grinding Attachment
2 Wheel Design- Wheel Size (Top Wheel)- 4" Wide x 6" Diameter
(Bottom Wheel)- 4" Wide x 8" Diameter
Grinding Motor H.P.- 15
Grinding Motor Volts- 230/460
Grinding Motor RPM- 3,490
Overall Dimensions- 6' 4" Wide x 30' Long x 8' High
Approx. Weight- 20,000 lbs.
