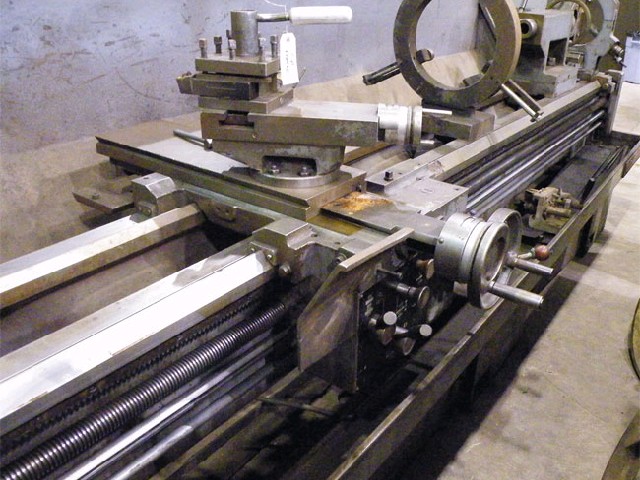

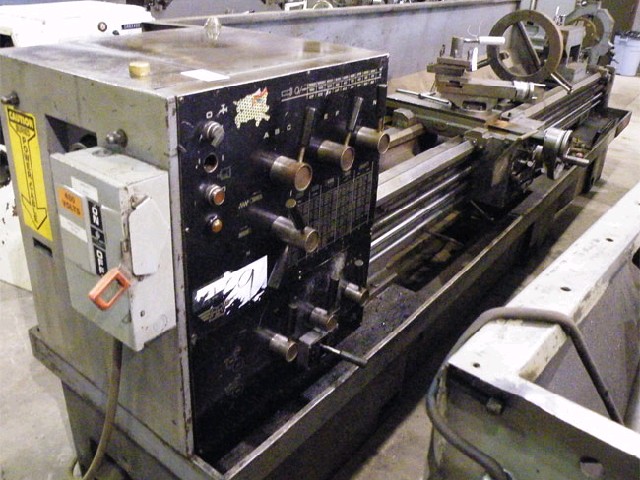

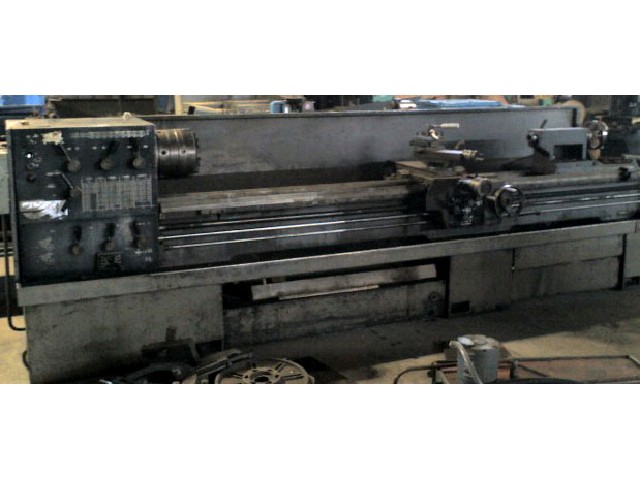

22 x 120 Enterprise Engine Lathe w/ 3 Hole, Taper, St Rests

22" x 120" Enterprise Engine Lathe w/ 3" Hole, Taper, St Rests

Stock Number: 2832

Condition: Good

22 x 120 Enterprise Engine Lathe w/ 3 Hole, Taper, St Rests, Click to view larger photo...       22 x 120 Enterprise Engine Lathe w/ 3 Hole, Taper, St Rests, Click to view larger photo...       22 x 120 Enterprise Engine Lathe w/ 3 Hole, Taper, St Rests, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Swing Over Bedways22"
Swing Over Cross Slide15.5"
Distance Between Centers120"
Spindle Speeds (18)25 - 1250 RPM
Spindle Bore3.5"
Spindle NoseD1-11
Inch ThreadsYes
Metric ThreadsYes
Tailstock Quill Diameter3"
Tailstock TaperNo 5 MT
Bed Width15.5"
Motor
Floor Dimensions15'6" x 4' x 5'
Weight12,000 lbs

Equipped With:
12" 3 J Chuck, 12" 4 J Chuck, Taper Attach, 10" & 12" Steady Rests, 4 Way Tool Post, Full Length Spash Guard, Coolant System.
