18 x 80 American Turnmaster Engine Lathe w/ 3 Hole; 3J; 4J; Taper; Coolant

18" x 80" American Turnmaster Engine Lathe w/ 3" Hole; 3J; 4J; Taper; Coolant

Stock Number: 3075

Condition: Excellent

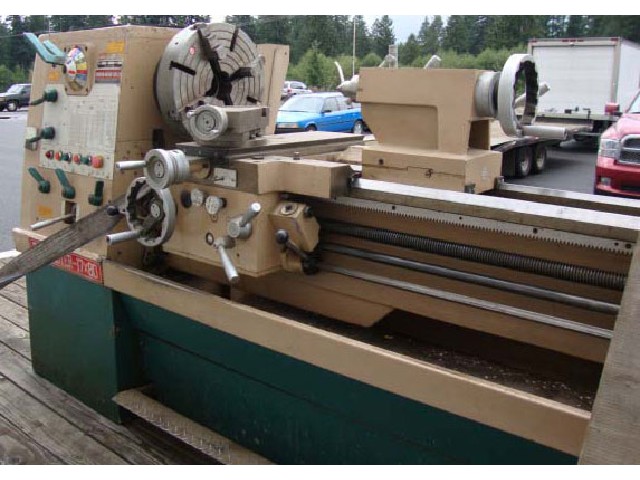

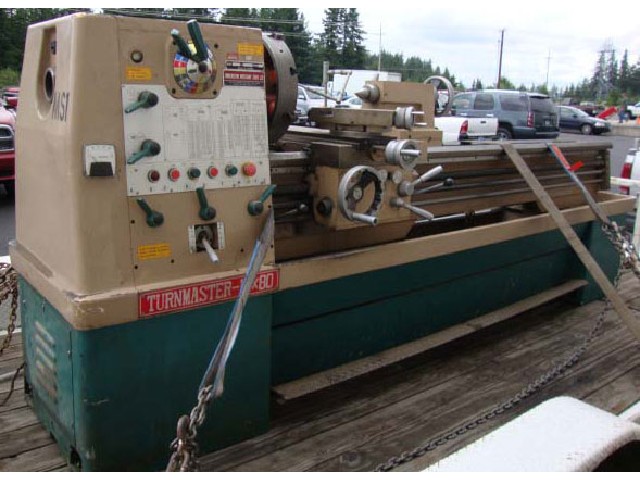

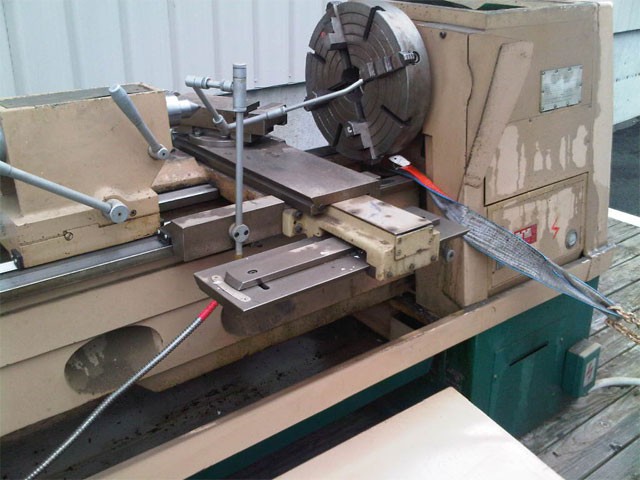

18 x 80 American Turnmaster Engine Lathe w/ 3 Hole; 3J; 4J; Taper; Coolant, Click to view larger photo...       18 x 80 American Turnmaster Engine Lathe w/ 3 Hole; 3J; 4J; Taper; Coolant, Click to view larger photo...       18 x 80 American Turnmaster Engine Lathe w/ 3 Hole; 3J; 4J; Taper; Coolant, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Swing Over Bedways18"
Swing Over Cross Slide11"
Distance Between Centers80"
Bed Width13.5"
Spindle Speeds (16)20 - 1600 RPM
Spindle Bore3.125"
Spindle NoseD1-8
Feed Range
Longitudinal0.0015-0.04"
Cross0.00075-0.02"
Inch Threads (45)2 - 72 T.P.I
Metric Threads (39)0.2 - 14
Tailstock Quill Diameter w/Tang4"
Tailstock TaperMT 5
Tailstock Quill Travel7"
Cross Slide Travel11"
Motor 220/440/3/60 wired 44010 HP
Floor Dimensions (L x W x H)138" x 44" x 66"
Weight6500 lbs


Equipped With:
3 Jaw Chuck; 4 Jaw Chuck; Face Plate; Taper Attachment; Clutch Fwd / Reverse; Foot Brake; Coolant and Chip Pans; Full Length Splash Guard
