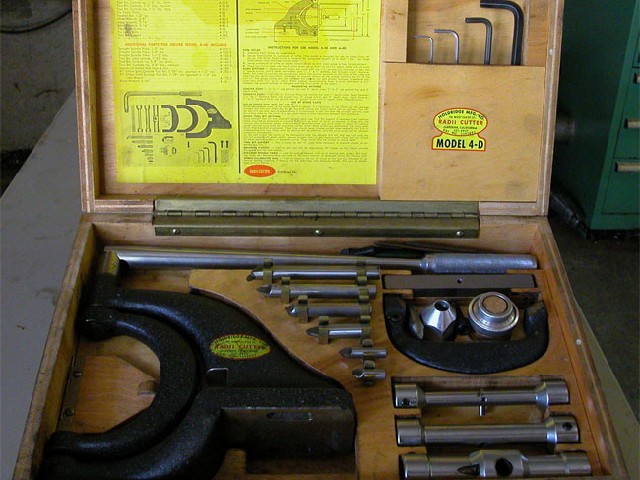

Holdridge No. 4D Radii-Cutter
Stock Number: 2648
Condition: Very Good
Click to view larger photo
Equipped With:
Model 4S
Popular Radii-Cutter for medium lathes will cut from 0" to 4" Cjonvex ball shapes and from 0" to 4" concave sodkets to radius depth. By reversing the "C" yoke, sockets up to 12" in diameter may be formed. However, radius depth will be minus 17/32" to allow for the "boss" line of the tool. Compound height from the bse of the tool to the centerline is adjustable from 1-5/8" to 1-3/4". Tool may be shimmed to fit various model lathes and turret lathes.

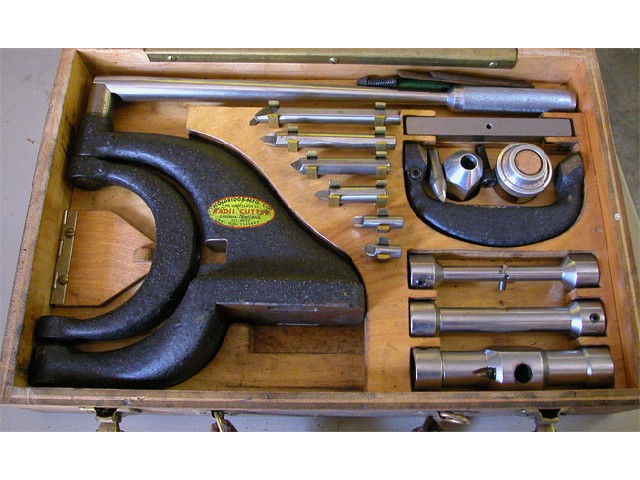

Model 4D includes:
Standard equipment plus dial, calibrated in degrees, 1/2" yoke, 3/4" yoke, 1-1/2" yoke; two3/8" tool bits, 1/2" offsetr carbide tipped tool bit.
