Holdridge No. 12D Radii-Cutter
Stock Number: 2649
Condition: Very Good

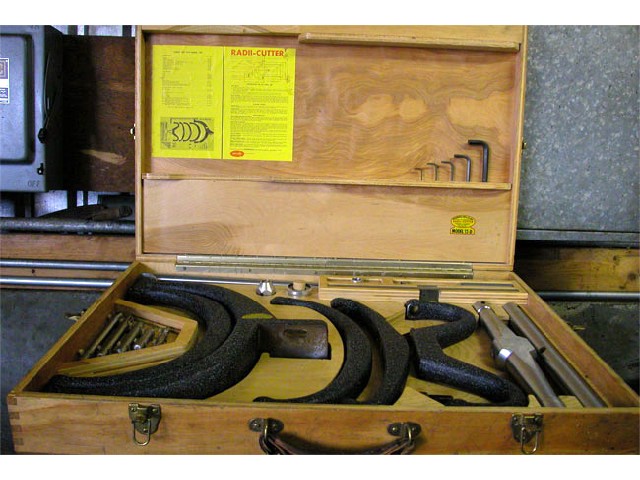

Click to view larger photo
Equipped With:
Model 12S
Popular Radii-Cutter for lathes 15" and larger and will cut from 0" to 12" Convex ball shapes and from 0" to 12" concave sockets to radius depth. By reversing the "C" yoke, sockets up to 24" in diameter may be formed. However, radius depth will be minus 3/4" to allow for the "boss" line of the tool. Compound height from the base of the tool to the centerline is adjustable from 1-5/8" to 1-3/4". Tool may be shimmed to fit various model lathes and turret lathes.
Model 12D includes:
Standard equipment plus One "C" yoke for 0 - 4" Concave, 0 - 3" convex, one "C" yoke for 3" to 7-1/2"convex, one "C" yoke for 7-1/2" to 12" convex, one "S" yoke for 4" to 12" concave cuts only, one 1-5/16" diameter straight spindle yoke, one 2-1/2" diameter straight spindle yoke, one 30 or 45 degree offset tool bit 5/8" diameter with ¼" bit, three 5/8" diameter carbide tool bits, one ½" diameter carbide tool bit, dial calibrated in degrees, parallel micrometer bar, tie down plate, tool bit support, five (5) Allen wrenches, handle extension, grinding fixture.
