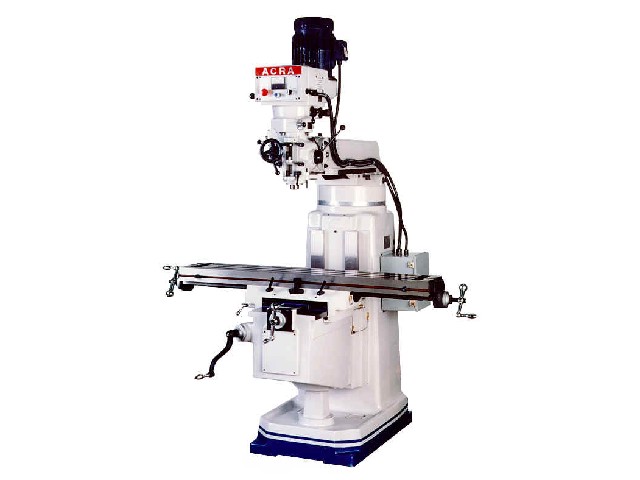

Acra Mill Model AM4V / AM4AC Vertical Milling Machine
Stock Number: 2067
Click to view larger photo
| Specification | Description |
|---|
| Table Size | 10" X 54" |
| X, Y & Z Axis Travel | 39 1/2" X 16" X 16" |
| Motor | 5 H.P. |
| Spindle | #40 Taper |
| RPM | 50 - 3750 (AM4V) |
| | 50 - 5000 (AM4AC) |
| Voltage | 220/440/3/60 specify |
| Weight | 3520 lbs |
| | |
| Cost for 440V with AC Inverter Drive (AM4AC) | $250.00 |
| AM4AC (AC Inverter Drive w/ Baldor Motor) | $9,750.00 |
Equipped With:
5 HP Head; Hardened & Ground Table & Ways; Double Wall Construction; Quill Heat Treat Hardened & Chromed; Turcite On The X & Y Axis
Tooling Package Includes:
Newall C-80 2 Axis DRO; Align Power Feed, X Axis; 6" Vise; Clamp Kit $1,400.00
DRO Installation $200.00
Newall C-80 2 Axis DRO Upgraded to 3 Axis $400.00
Y Axis Align Power Feed (Taiwan) $390.00
Z Axis Align Power Feed (Taiwan) $420.00
Quick Change Tool Set (#40 Taper) $300.00
Quality Power Draw Bar (USA) $500.00
