Climax Model KM-72SS Portable Key Mill w/ Side Shift

Climax Model KM-72SS Portable Key Mill w/ Side Shift

Stock Number: 2756

Age: 1986

Condition: Excellent

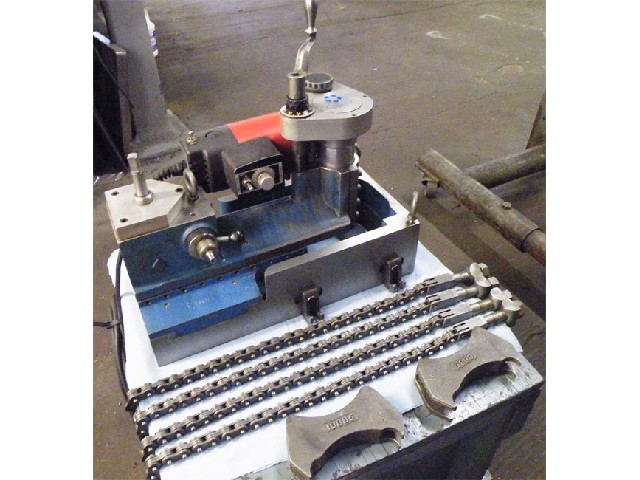

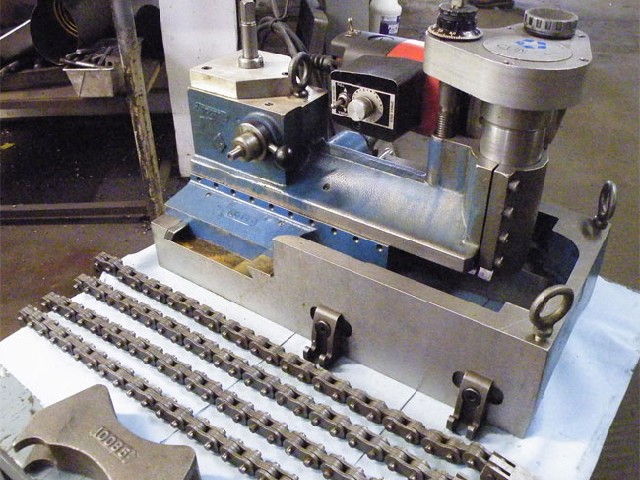

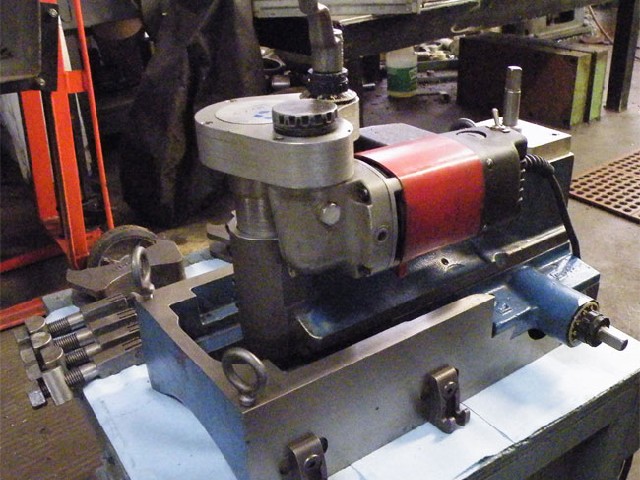

Climax Model KM-72SS Portable Key Mill w/ Side Shift, Click to view larger photo...       Climax Model KM-72SS Portable Key Mill w/ Side Shift, Click to view larger photo...       Climax Model KM-72SS Portable Key Mill w/ Side Shift, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Height Overall14"
Length Overall21"
Width Overall13"
Shipping Weight200 lbs
Metal Removal Rate1 cu in / min
Slide Travel, Longitudinal8"
Slide Tavel2"
Fits Shaft Sizes8" - 12"
Spindle Hole Diameter3/4"
Spindle Speed, Variable280 - 525 RPM
Motor Horse Power1-1/2 HP
Motor Voltage115/3/60
Vertical Cutter Depth Adjustment.001" increments
Transverse Slide Adjustment.001" increments

Equipped With:
Variable Speed Milling, Side Shift, Tie Die Chains and Clamps, Srorage Box
