Presses - All Types: 350 Ton Bliss No 59 Straight Side, Single Crank, Back Geared SS Press

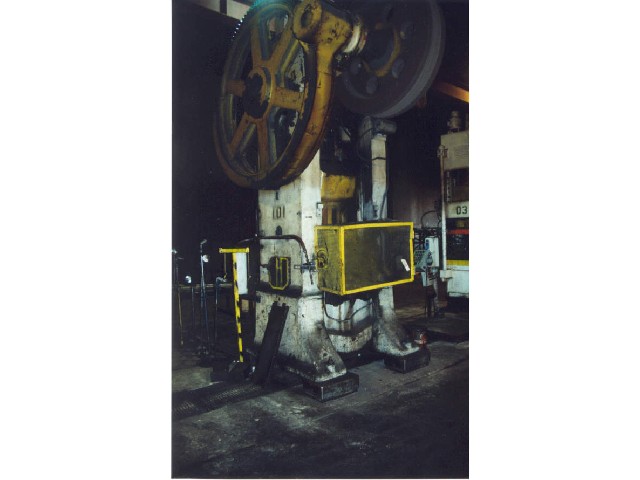

350 Ton Bliss No 59 Straight Side, Single Crank, Back Geared SS Press

Stock Number: 1800

Age: 1951

Presses - All Types: 350 Ton Bliss No 59 Straight Side, Single Crank, Back Geared SS Press, Click to view larger photo...       Presses - All Types: 350 Ton Bliss No 59 Straight Side, Single Crank, Back Geared SS Press, Click to view larger photo...       Presses - All Types: 350 Ton Bliss No 59 Straight Side, Single Crank, Back Geared SS Press, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Stroke4"
Strokes Per Minute25 SPM
Slide Area (L-R x F-B)26-1/2" x 24"
Slide Adjustment5"
Bed Area ( L-R x F-B)33" x 40"
Bed Opening ( L-R x F-B)12" x 18"
Die Height S.D.A.U. 21"
Bed (L-R x F-B)33" x 40"
Windows (U-D x L-R)15" X 16"
Motor 440/3/6030 HP 1200 RPM
Floor Dims (guards included) : L-R x F-B x H76" x 125" x 200"


Equipped With:

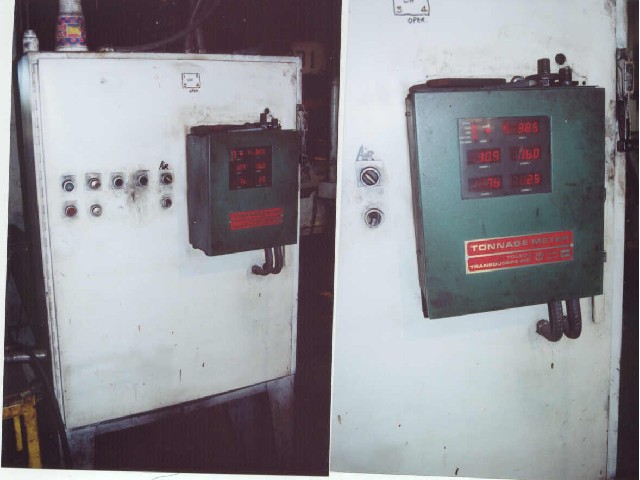

Foto Shield\; Toledo N204 Tonnage Meter\; Air Clutch/Brake
