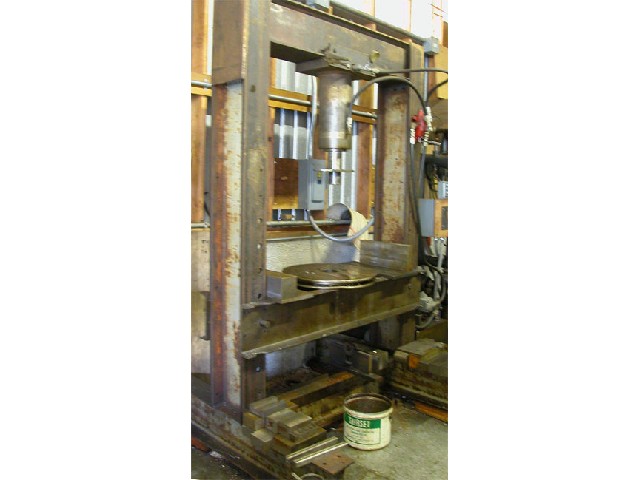

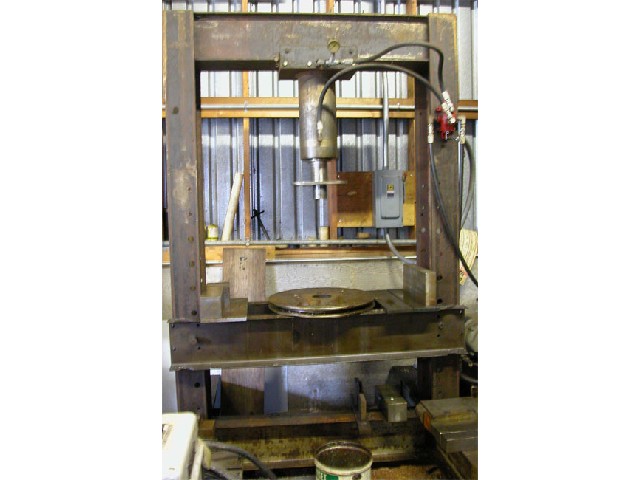

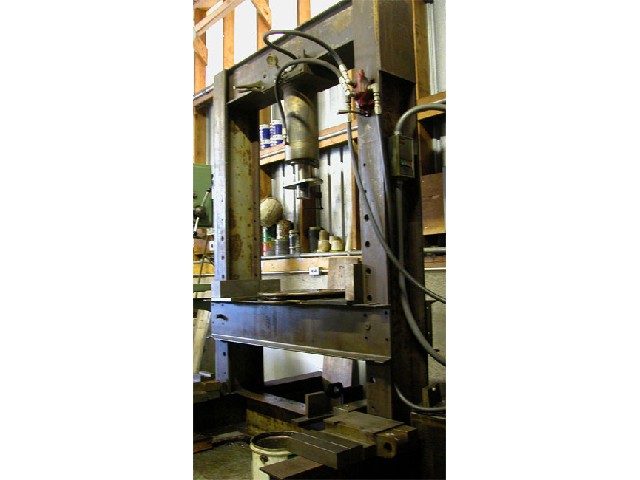

| Specification | Description |
|---|---|
| Distance Between Uprights | 48" |
| Min / Max Bed to Ram Height | 3.25" - 33" |
| Stroke | 7.5" |
| Diameter of Ram | 3.5" |
| Diameter of Cylinder (OD Cyl / Packing) | 8" / 5.5" |
| Width of Bed | 17" |
| Dimension of Vertical Beams | 6" x 11" |
| Floor Space (LxWxH) | 60" x 60" x 96" |
| Motor 230/460/3/60 | 10 HP |
| Hydraulic Tank Dimension | 30" x 30" x 18" |
