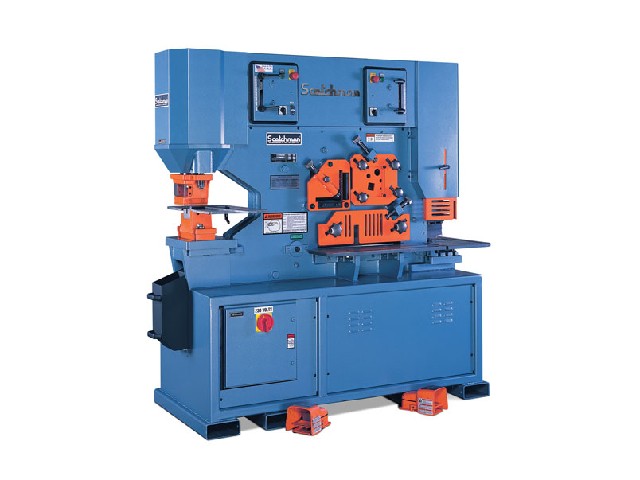

85 Ton Scotchman Hydraulic Ironworker Model DO8514-20 (New)
Stock Number: 2417
Condition: New
Click to view larger photo
| Specification | Description |
|---|
| Punching Capacity | 85 Ton |
| Throat Depth | 14" |
| Flat Bar Shear | 20" |
| Shear Capacity | 3/4" x 20" |
| Angle Shear | 6" x 6" x 1/2" |
| Rectangular Notch Station | 2" x 4" x 1/2" |
| Rod Shear Rounds to | 1-1/2" |
| Rod Shear Squares to | 1-1/2" |
| Strokes Per Minute (1/4" stroke) | 48 SPM |
| Strokes Per Minute (3/4" stroke) | 20 SPM |
| Motor (3 phase) | 10 HP |
| Dimensions (LxWxH) | 60" x 30" x 77" |
| Weight | 5,400 lbs |
Equipped With:
Standard Features:
* Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
* 85 Ton Punch Station (1-1/16" in 1")
* Keyed Punch Ram for Safety
* 14" Throat Depth
* Punch Gauging Table with Fence and Scale
* Die Holder Complete with 2" Die Insert for #82 Dies, Punch Nut with Wrench
* Adjustable Swing-Away Stripper
* One Round Punch & Die: Max. Dia. 1-1/4"
* Punch Jog Control
* Two Adjustable Electric Stroke Controls with Scale
* Two Electric Remote Foot Pedals
* Two 2-Stage Hydraulic Pumps
* Two Valves
* 6" x 6" x 1/2" Slug-less Angle Shear
* Built-In Rectangle Notcher: 2" x 4" x 1/2" can be converted to 3" x 3" V-Notcher,
* 50-Ton Punch Station, and 6" Open End Brake
* 20" Flat Bar Shear with 4-Way Reversible Blade (1" x 16", 3/4" x 20")
* Shear Table with Miter Fence
* Rod Shear: 1/2", 3/4", 1", 1-1/2" Round and 1-1/2" Square
* Slug Receptacles
* Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out accommodations
* 230 or 460 Volt /3 ph Electrics
* All Guards Necesary to Comply with ANSI B 11-5 Standards
* Forklift Accommodations
* One Year Warranty
* Made in USA
Optional Equipment: (see attached price list for additional options)
6" Open End Brake For Notcher Station 025360 $1,135.00
Optional UL Approval 005710 125.00
Fabricating Packages:
#2545 Punch & Die Package 002545 $300.00
#2575 24" Brake, Work Light & 48" Back Gauge 002575 $1,745.00
Pacific States Machinery Co
PO Box 3038
Clackamas, OR 97015-97015
503-722-5117
