50 Ton Scotchman Hydraulic Ironworker Model 5014-CM (New)
Stock Number: 2420
Condition: New

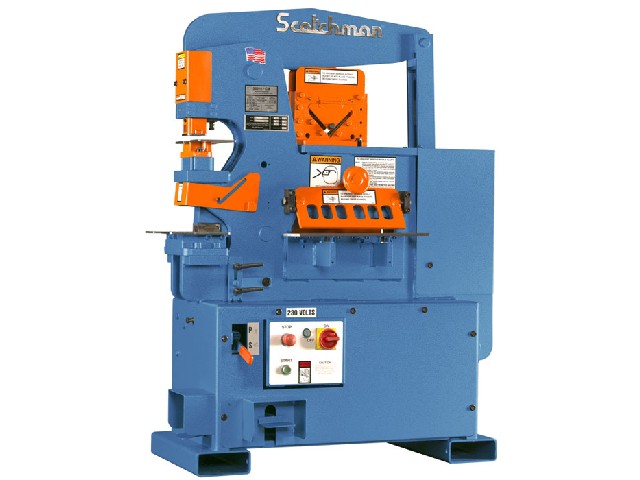

Click to view larger photo
| Specification | Description |
|---|
| Punching Capacity | 50 Ton |
| Throat Depth | 6" |
| Flat Bar Shear | 14" |
| Shear Capacity | 1/2" x 8" |
| Angle Shear | 4" x 4" x 3/8" |
| Rectangular Notcher** | 2-1/2" x 2-3/4" x 3/8" |
| Strokes Per Minute (1/4" stroke) | 40 SPM |
| Strokes Per Minute (3/4" stroke) | 17 SPM |
| Motor (3 phase) | 3 HP |
| Dimensions (LxWxH) | 47" x 29" x 59" |
| Weight | 1,250 lbs |
| ** New Model Includes | Rectangular Notcher |
Equipped With:
Features:
Built In Coper / Notcher
Keyed Punch Ram for Safety
6" Throat Depth
2" Die Holder
Punch Nut w/ Wrench
One Round Punch & Die, Max. 1"
Stroke Control
4 Way Reversible Shear Blades
All Guards to Comply with ANSI B 11-5
Forklift Accommodations
One Year Warranty
Made in the USA
Optional Equipment:
Economy Fabricating Package #2505 $300.00
Fabrication Package #2725 $1,750.00
CONVEYOR (24" x 5' W/Support Arms) P/N 026980 $1,995.00
