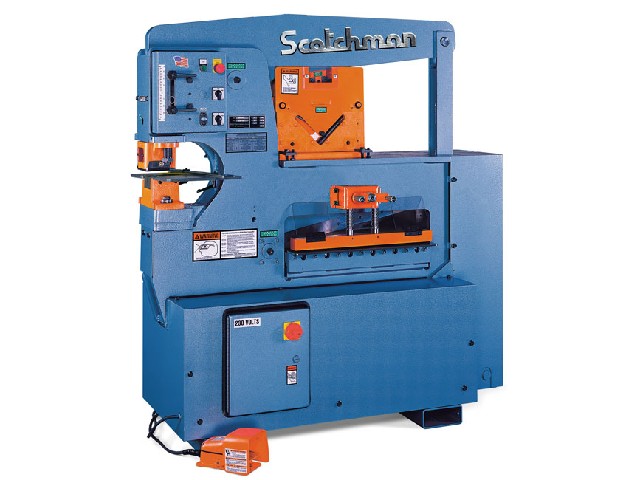

65 Ton Scotchman Hydraulic Ironworker Model 6509-24M (New)
Stock Number: 2428
Condition: New
Click to view larger photo
| Specification | Description |
|---|
| Punching Capacity | 65Ton |
| Throat Depth | 9" |
| Flat Bar Shear | 24" |
| Shear Capacity | 1" x 6"; 1/4" x 24" |
| Angle Shear | 6" x 6" x 3/8" /5" x 5" x 1/2" |
| Strokes Per Minute (1/4" stroke) | 40 SPM |
| Strokes Per Minute (3/4" stroke) | 17 SPM |
| Motor (3 phase) | 5 HP |
| Optional Motor (1 Phase) | 5 HP |
| Dimensions (LxWxH) | 60" x 24" x 66" |
| Weight | 2,750 lbs |
Equipped With:
Features:
Angle Shear 6" x 6" x 3/8" Cap
Power Cavity to Accomodate Up To 24" Brake Tooling
9" Throat Depth
2" Die Holder
Keyed Punch Ram for Safety
Punch Nut w/ Wrench
One Round Punch & Die, Max. 1"
Stroke Control
4 Way Reversible Shear Blades
All Guards to Comply with ANSI B 11-5
Forklift Accommodations
One Year Warranty
Made in the USA
Optional Equipment:
Economy Fabricating Package P/N 2545 $300.00
Fabrication Package P/N 2752 $2,650.00
CONVEYOR (24" x 5' W/Support Arms) P/N 026980 $1,995.00
Ul Approval P/N 005710 $125.00
Rectangle Notcher 2 X 2-1/2 X 3/8" P/N 026000 $1,775.00
