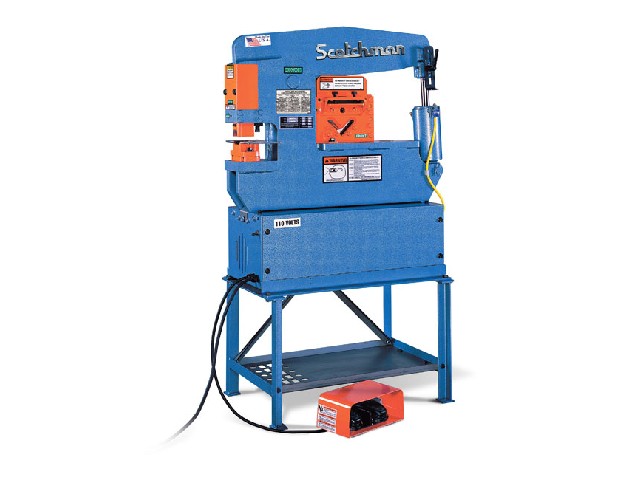

45 Ton Scotchman Hydraulic Ironworker Model Porta Fab 45 (New)
Stock Number: 2727
Condition: New
Click to view larger photo
| Specification | Description |
|---|
| Punching Capacity | 45 Ton |
| Throat Depth | 4.25" |
| Flat Bar Shear | 6" |
| Shear Capacity | 1/2" x 4" |
| | 3/8" x 6" |
| Angle Shear | 2" x 2" x 1/4" |
| Round Rod Shear | 3/4" |
| Strokes Per Minute (1/4" stroke) | 20 SPM |
| Strokes Per Minute (3/4" stroke) | 6 SPM |
| Motor (Single Phase) | 2 HP |
| Dimensions (LxWxH) | 35" x 18" x 39" |
| Weight | 640 lbs |
Equipped With:
Features:
Keyed Punch Ram for Safety
4.25" Throat Depth
2" Die Holder
Punch Nut w/ Wrench
One Round Punch & Die, Max. 1"
Stroke Control
Three-in-one combination tool
Angle shear capacity: 3" x 3" x 5/16" at 90 degrees and 2" x 2" x 1/4" at 45 degrees. - Bar shear capacity: 3/8" x 6" - Rod shear capacity: 3/4" Round
Tool Table Work Area
All Guards to Comply with ANSI B 11-5
110v/1 phase electrics
One Year Warranty
Made in the USA
