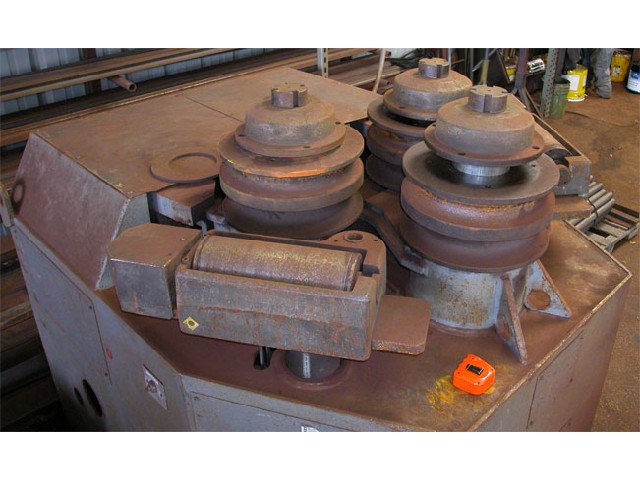

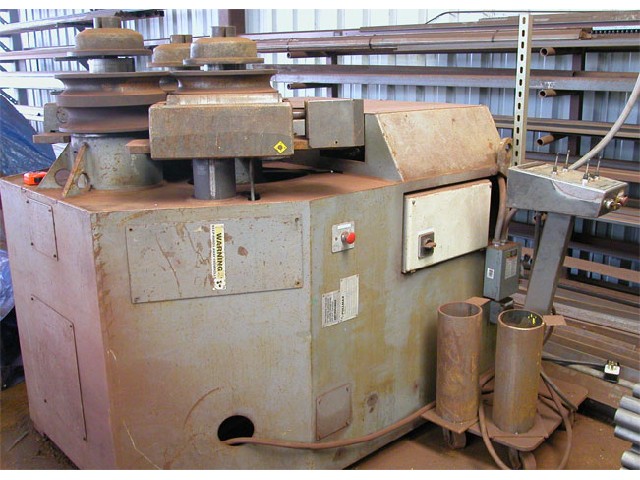

5" x 5" x 1/2 Pullmax Z60 Profile Rolling Machine, I-2594
Stock Number: 2594
Age: 1987
Condition: Good
Click to view larger photo
| Specification | Description |
|---|
| Weight | 10,200 lbs |
| Electrics | 220/440/3/60 |
| Diameter of Roll Shafts | 5.5" |
| Single Keyed Shafts | 1.375" keyway |
Equipped With:
Description of Photos for Pullmax Z60 Profile Roll. Stock Number: 2594
Photo Reference 2594-13-Pullmax-Z60: Left View of Dies (shows Guide Rolls)
Photo Reference 2594-14-Pullmax-Z60: Right View of Dies
Photo Reference 2594-15-Pullmax-Z60: 2 pieces ONLY Size 2"; Bottom Die Size 3-5/8"
Photo Reference 2594-15a-Pullmax-Z60: 2" Die … would need spacer to work with the above 2594-15 Top Die.
Photo Reference 2594-16-Pullmax-Z60: Section Rolls. Shown 3 Large Main Roll, 2 @ Smaller Adjustable Rolls … see 2594-16a
Photo Reference 2594-16a-Pullmax-Z60: 1 @ Smaller Adjustable Roll to Complete Section Roll Set.
Photo Reference 2594-17-Pullmax-Z60: 4 pieces, there are 5 like this.
Photo Reference 2594-18 & 18b-Pullmax-Z60: 3 pieces 4-1/2" Die Size … both photos are the same die set.
