5 x 5 x 1/2 MG Hydraulic Section / Angle Roll w/ Pipe & Stnd TLG

5" x 5" x 1/2" MG Hydraulic Section / Angle Roll w/ Pipe & Stnd TLG

Condition: Good

Stock Number: 3233

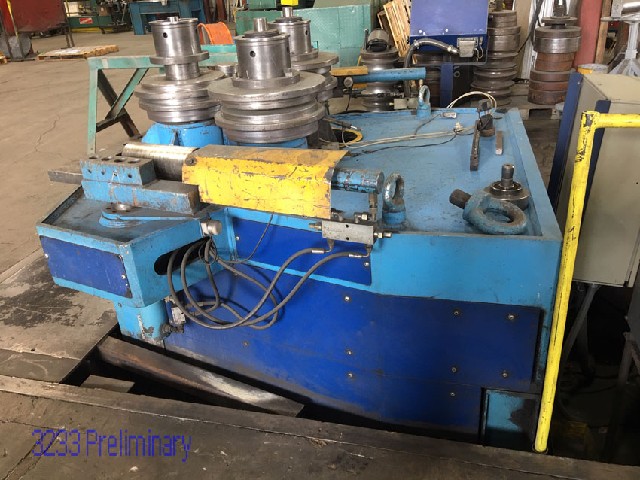

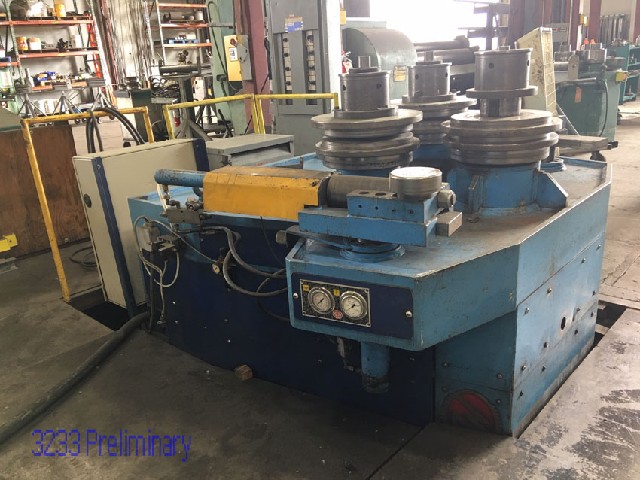

Click to view larger photo

Request A Quote On Our Stock Number: 3233 5 x 5 x 1/2 MG Hydraulic Section / Angle Roll w/ Pipe & Stnd TLGRequest a quote on stock# 3233
SpecificationDescription
Angles Leg Out5" x 1/2" to 142" Min Radius
Angle Leg In4.75 x .562: to 118" Min Rad
Flats on Edge6" x ,812" to 71" Min Rad
Flats on Flats8" x 1.18:" to 71" Min Rad

Pipe (Additional Tooling Requred)6.625" x .25" to 15" Min Rad

Diameter of Roll Shafts5.5"
Universal Tooling Diameter15.75"
Roll Speed, Variable0 to 237 IPM
Motor 480/3/60 or 230/3/6020 HP

Floor Dimensions (L x W x H)73" x 65" x 73"
Weight8,800 lbs

Catalog SpecificationsConfirm for Application


Equipped With:
Guides, Lateral,

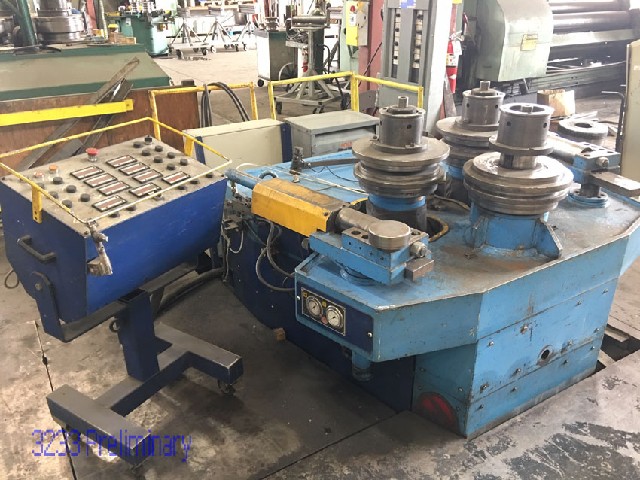

Free standing control with joysticks
Linear Encoder for Material Positioning
Hydraulically operated leg-in & leg-out attachment
Hydraulic adjustment of lower rolls with digital readout position indicator
Pendant control with pushbuttons for rolls up - down -reverse & forward
Pushbuttons for start - stop & emergency stop button

Pipe Rolls: 1) Set 4-1/2" ; 1 - Set 3" and 2-3/8"
Standard Profile Rolls

Hydraulic pump, driven by 20 HP 230/460/3/60 motor
