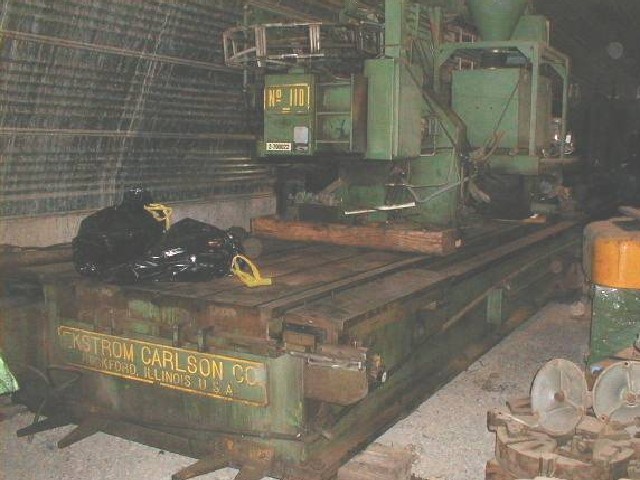

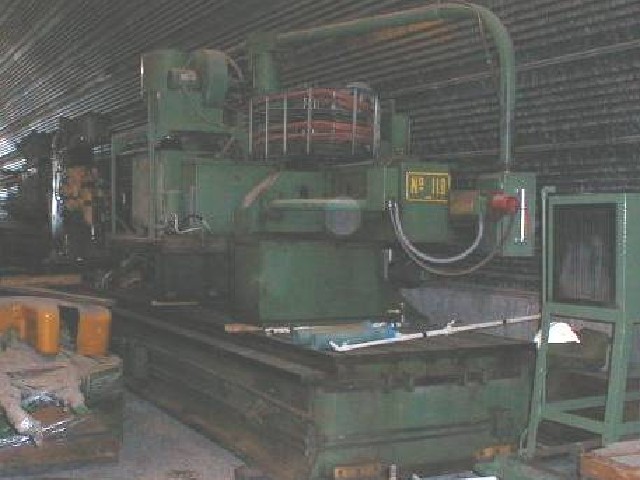

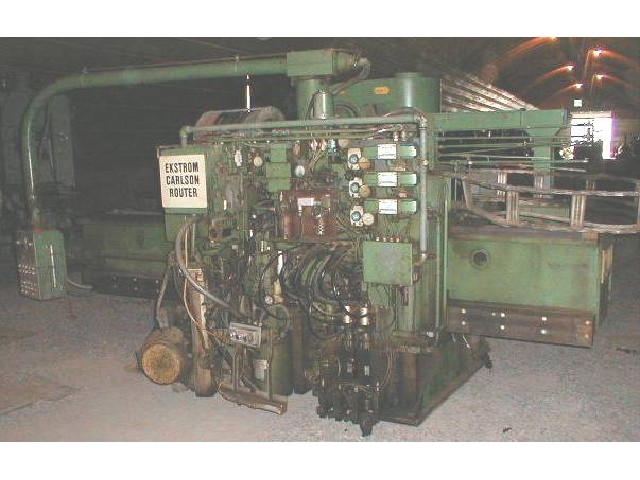

EKSTROM-CARLSON 4' x 15' NC/CNC ROUTER
Stock Number: 2796
Condition: Good
Click to view larger photo
Equipped With:
Table Size- 56" x 18' 2" with T-Slots
Number of T-Slots- 6
Center to Center of T-Slots- 9" & 12" & 9" & 9" & 12"
Table Height from Floor- 30-1/2"
Distance Between Housings- 58-1/2"
Ball Screws on All Axis
Tolerances
Positioning- +/- .003"
Repeatability- +/- .001"
Movements (Tape-Controlled)
Longitudinal (X-Axis)- 157-3/4"
Transverse (Y-Axis)- 78-1/2"
Main Vertical Slide (Z-Axis)- 12"
Auxiliary Router Slide- 6"
Lagscrew Driver Stroke- 4"
Feed Rates
Longitudinal Feed Rates- 0-400 IPM (Controlled) or 400 IPM (Rapid)
Transverse Feed Rates- 0-400 IPM (Controlled) or 400 IPM (Rapid)
Vertical Feed Rates- 0-200 IPM (Controlled) or 200 IPM (Rapid)
Spindle Motor Information
Equipped with 1 Water Cooled Ekstrom-Carlson Milling/Router Head
Milling/Router Head Serial No.-82-HC-234
Milling/Router Head H.P.- 5/10/20
Milling/Router Head RPM- 3,300/6,900/14,100
Spindle Taper- # 40 NMTBA
Amps- 28.8
Lubrication- Oil Mist
Cutter Coolant- Mist
Spindle Nose to Table Top- Min.- ½"
Spindle Nose to Table Top- Max.-18 ¼"
Power Draw Bar
Chip Collection System
Pressure Foot- Vertical and Lateral Mobility
3 Drill Spindles Model A25/23P
Drill Spindle Speeds 1,000 to 10,000 RPM
Drill Nose to Top of Bed- Min. 3"
Drill Nose to Top of Bed- Max. 15" Max.
Dixon Model SD-107 Screwdriver Attachment (Serial No.- 2713)
(2ea.) 4' x 10' portable work tables.
(31ea.) Tool Holders with Misc. Drills, Cutters, Collets, Screwdrivers
(17ea.) Misc. Tool Holders
(1ea.) Extra Water Cooled Milling/Router Head (same as above)
Lots of Manuals and Documentation
Allen-Bradley 7320 CNC Control
Overall Machine Dimensions- 14' wide x 23' long x 9' 8" high
Total Machine Weight with Electrical Panel- 54,000 lbs.
Break Down of Machine Componets
Rail Overall Dimensions- Front - Back 7'10" x Left - Right 14' x 8' high
Approx. Rail Weight- 15,000 lbs.
Base & Table Dimensions- 8' 1" wide x 23' long x 30-1/2" high
Approx. Weight- 30,000 lbs.
Electric Panel Dimensions- 4' 6" wide x 14' 6" long x 8' 4" high
Approx. Weight- 8,000 lbs.
