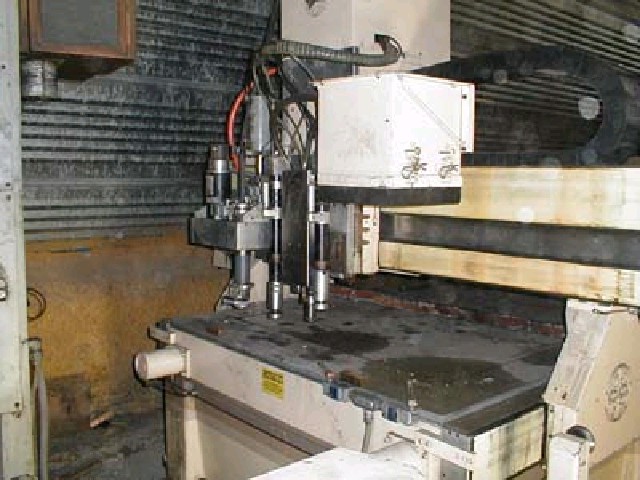

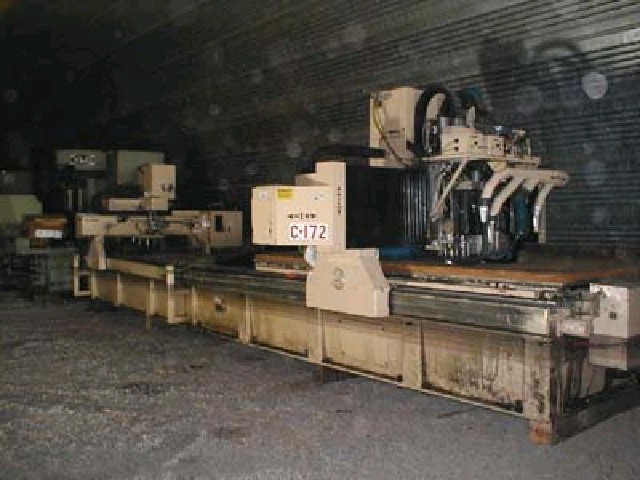

54" x 22' CAMPBELL 3-Spindle CNC Stack Router
Stock Number: 2889
Condition: Good
Click to view larger photo
Equipped With:
Customer Order Number- B-225717-99400 Manual No.- 701X101-02
Bed Size- 60" x 324" Working Surface Size- 54" x 22'
(2ea.) Vacuum Chuck Size- 48" x 144"
X-Axis Travel- Approx. 22' Y-Axis Travel- 60" (Head on Rail)

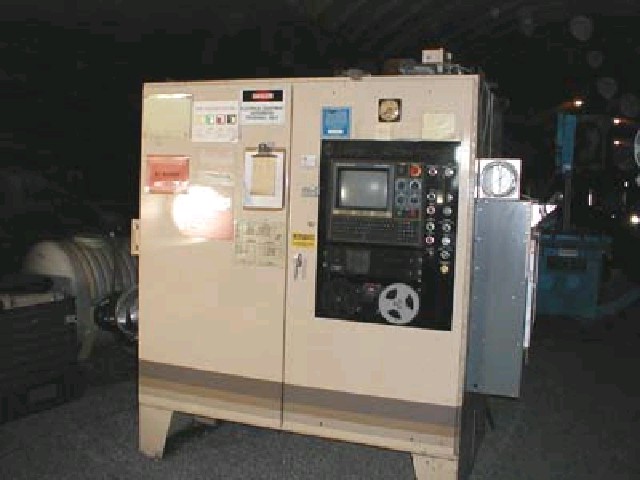

Z-Axis Travel- 5" (Heads up/dn over table) Control- AB 8600 Control
1-Heavy Milling Spindle, RPM 21,000, H.P. 15, Volts 460, Cycle 60, Phase 3
3-Induction Motor (Type S 3563) Drilling/Router Spindle RPM 1,200, H.P. ½
Volts 220/440, Cycle 60, Phase 3
Machine is in nice condition as taken from Boeing Company
Equipped with: Shuttle Table, ATC, Dust Collector, Inkjet Gantry & Large amount of Spare Parts.
Overall Dimensions- 11' wide x 29' 6" long x 8' 8" high (main machine only)
Approx. Weight- 35,000 lbs. (main machine only)
Machine is Made by: CAMPBELL AUTOMATION
925 Old Lenoir Road
Hickory, NC 28601
Pacific States Machinery Co
PO Box 3038
Clackamas, OR 97015-97015
503-722-5117
503-296-2178
