11' x 38' EKSTROM-CARLSON Gantry Type Profile Mill

11' x 38' EKSTROM-CARLSON Gantry Type Profile Mill

Stock Number: 2890

Condition: Good

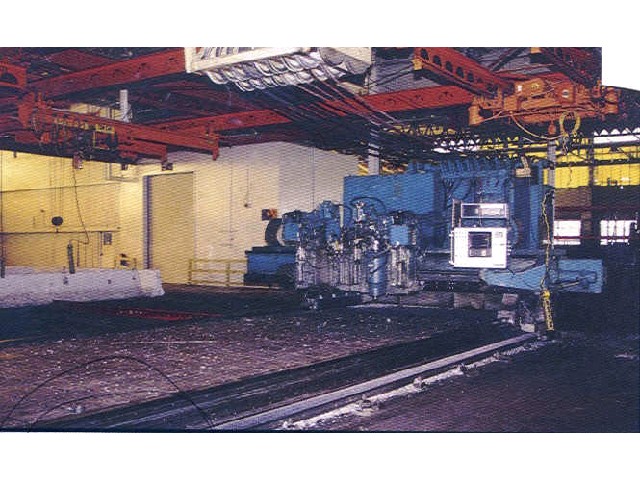

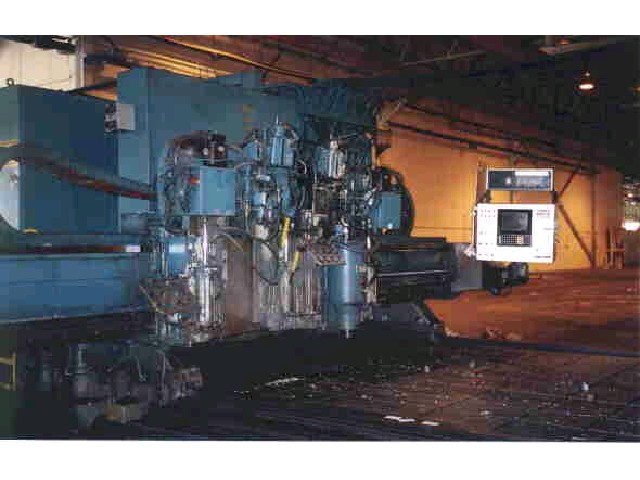

11' x 38' EKSTROM-CARLSON Gantry Type Profile Mill, Click to view larger photo...       11' x 38' EKSTROM-CARLSON Gantry Type Profile Mill, Click to view larger photo...
Click to view larger photo


Equipped With:
Control- Allen-Bradley 7300 with CRT & Camstore Upgrade (3811)

Spindle Serial No.- 81-HC-148 Approx. Spindle to Table Clearance- 11" - 18"
Spindle Speeds- 3,500/7,000 RPM Spindle H.P.- 7.5/37.5
Hard Ways on Rail with Ball Screw and Roller Packs
Getty Servo Motor
Alemate Oil Mist System
Hard Ways on Bed/Table with Roller Packs
Getty Servo Motors (4) two on each side of table
Aluminum Sub Plate on Table with T-Slots (27ea.) long ways and (7ea.) cross ways

Machine was under power in California Gov. Plant when we purchased it in April of 1998
Machine is now dismantled for shipping and stored in our warehouse
Machine comes with extra ball screws, drives & 3 extra spindles

Overall Dimensions- 14' wide x 48' long (Bed Section)
22' wide x 12' deep x 9'6" high (Rail)

New Replacement Cost: $ 2,000,000.
