14 x 19 Scotchman SH1419 Horizontal Bandsaw w/ Swing Head

14" x 19" Scotchman SH1419 Horizontal Bandsaw w/ Swing Head

Stock Number: 2687

Condition: New

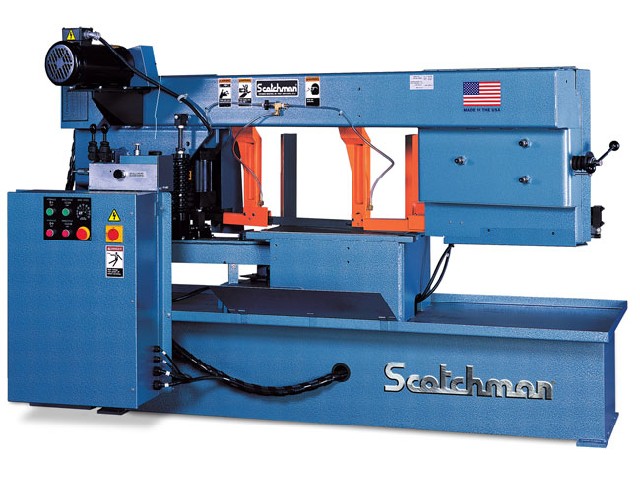

14 x 19 Scotchman SH1419 Horizontal Bandsaw w/ Swing Head, Click to view larger photo...
Click to view larger photo

SpecificationDescription
Capacity at 90 degrees, rectangular14" x 19"
Capacity at 90 degrees, rounds15"
Capacity at 45 degrees, rectangular14" x 14"
Capacity at 45 degrees, rounds15"
Capacity at 30 degrees, rectangular14" x 10.5"
Capacity at 30 degrees, rounds10.5"
Feed ControlHydraulic, Inf Variable
ViseHydraulic, Full Stroke
Blade Size1-1/4" x .042" x 197"
Balde Speeds (Infinetly variable, AC Inverter)70 to 400 SFPM
Drive Wheels20" Dia Cast Iron
Blade TensionHandwheel
Coolant System5 gal w/ washdown hose
Blade Drive Motor3 HP Vari Freq AC Drive
Motor Voltage (Specify)208, 220, 230, 240/3/60
Dimensions (L x W x H)92" x 42" x 68"
Weight1700 lbs

Equipped With:
Head Swings 60 degrees - No Material Movement; 3 HP Variable Frequency Blade Drive Motor; Hydraulic Feed Control with Separate Adjustable Rate and Feed Pressure; Quick Head Approach with Hold for Ease of Line-up; Hydraulic Full Stroke, Full Capacity Vise; Hydraulic Head Raise; Hydraulic Vise Clamp; Infinitely Adjustable Blade Speed via AC Inverter; Saw Guides, Spring Loaded, Solid Carbide Inserts for Clean Accurate Cuts; Replaceable Steel Wear Plates on Bed; Re-circulating Flood Coolant System w/Splash Guard; Wash Down Hose with Hanger for Easy Cleanup; Powered Blade Brush for Straight Cuts and Longer Blade Life; Saw Blade Guard for Operator Safety; Instruction and Parts Manual; Made in USA

Optional Accessories:
Overhead Nesting Vise
Variable Vise Pressure
Mist Coolant Band Lubricator
Work Light
Roller Conveyor
220 Volt, 1 ph
Outboard Fence
