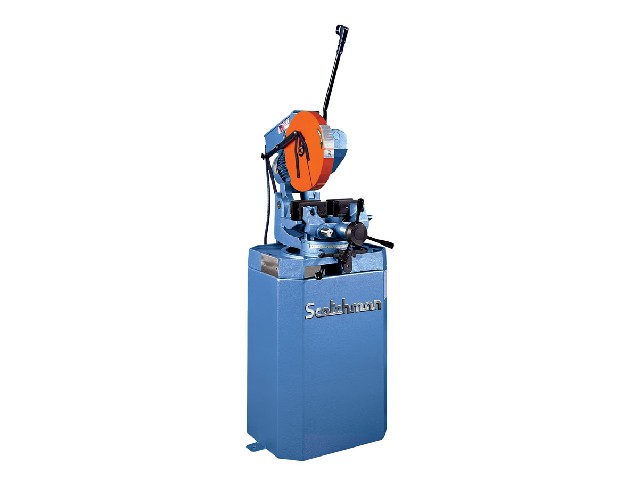

14" Scotchman CPO350 LT/HT Cold Saw
Stock Number: 2916
Condition: New
Click to view larger photo
| Specification | Description |
|---|
| Tubing | |
| Round 90 degrees | 4.5" |
| Round 45 degrees | 4" |
| Square 90 degrees | 4.5" x 4.5" |
| Square 45 degrees | 4" x 4" |
| Rectangular 90 degrees | 5.5" x 4" |
| Rectangular 45 degress | 4" x 4" |
| | |
| Solid Material | |
| Round 90 degrees | 2" |
| Round 45 degrees | 1.75" |
| Square 90 degrees | 2" x 2" |
| Square 45 degrees | 1.75" x 1.75" |
| | |
| Motor | 5 HP |
| Voltage **Specifiy** | 208/230/460/3/60 |
| | |
| Maximum Blade Diameter | 14" |
| Arbor Bore | 1.5625" |
| Pin Spacing | 4/12/24 |
| Dimesions | |
| Width of Machine | 21.875" |
| Height Excluding Handle | 56.25" |
| Height Floor to Vise | 37.4375" |
| Shipping Weight | 675 lbs |
| | |
| Square Tube Jaws P/N 076910 | $750.00 |
| | |
Equipped With:
Double Self-Centering Vise Assures Burr-Free Cuts; Air-operated clamp for material vise; Emergency Stop Button; Miter Capabilities 45 degrees Left and 45 degrees Right; Miter Locking Devise: quick, accurate setting-stops at 45 degrees Left, Straight 90 degrees, and 45 degrees Right; Capable of Slotting; Two Cutting Speed Ranges; Double Reduction, Hardened and Ground Worm and Wheel Gear Box; Worm Wheel of Top Quality Bronze; 7 Gallon Coolant Tank with Pump; 30" Material Length Stop; One 12-1/2" Diameter (315 mm) HSS Blade; One Blade Wrench; One Gallon Concentrated Coolant; 230 or 460 Volt /3 Phase Electrics (must specify voltage); Warranty: One Year Parts; Made in USA
Economy Fabricating Package:
Four 12.5" Diameter Saw Blades (specify number of teeth); One 10' Material Supply Track; One 120" Material Stop Track with Right Hand OR Left Hand Quick Loc (**SPECIFY RH #72659 or LH #72657**); One Set Square Tube Diagonal Vise Jaws; and One Mag Brush for Chip Removal.
List Price: $2,871.00
Package Price: $1,975.00
Pacific States Machinery Co
PO Box 3038
Clackamas, OR 97015-97015
503-722-5117
