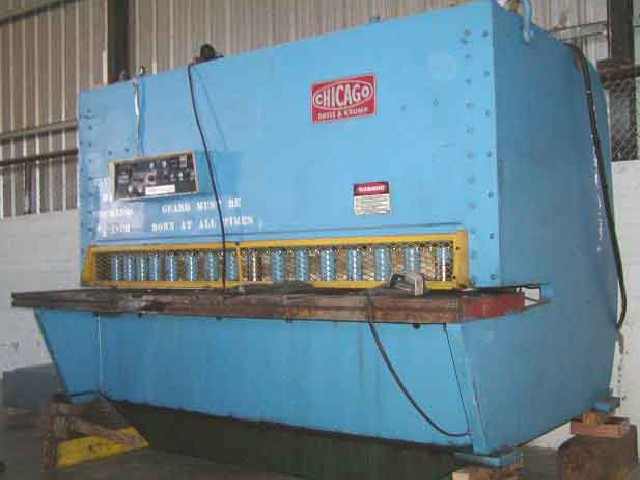

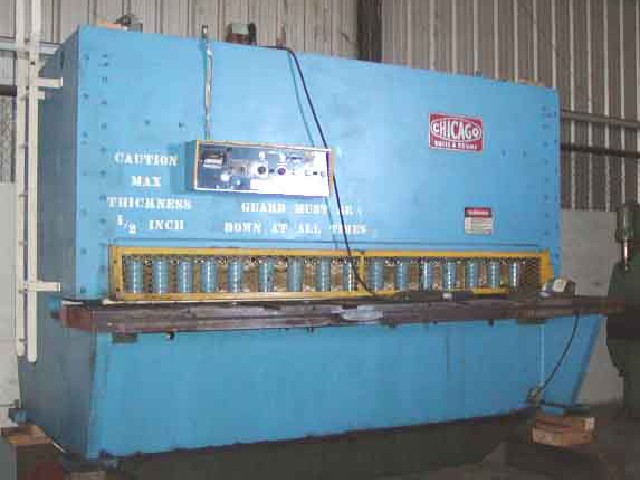

5/8" x 10' Chicago Dries & Krump Hydraulic Power Squaring Shear
Stock Number: 2146
Age: 1965
Condition: Good
Click to view larger photo
Equipped With:
Model- OHS 10625
Capacity- 10' x 5/8"
Gap- 20"
Chicago Pre-Select
Foot Pedal Control
Back Gauge
Squaring Arm
12' 3" Overall
11' 1" Between Housings
Pit Required- 14"
Motor needs to be rewound
Motor H.P.- 40 KW
Motor Volts- 230/460
3-Phase
60 Cycle
RPM- 1,740
Overall Dimensions- 8' 8" F-B x 12' 9" L-R x 10' 10" High
Approx. Weight- 45,000 lbs.
